How To Implement New Features

This page collects various tutorials for often-needed development activities. The tutorials build upon each other and together cover the full development cycle for adding a new feature: from creating a Django app and defining the data model, through admin integration, all the way to exposing the model via the REST API so the frontend can consume it. Following them in order for each new feature ensures nothing is missed.

Note

The repository contains AI agent definitions to assist with these tasks. You can read them for additional information. When using AI agents, please still manually check the outcome against nearby code and the documentation on this page.

Creating New Apps

Domain-specific features for OpenBook live in separate Django apps within the OpenBook Django project, in line with best practices recommended by the Django developers. Technically speaking, both are Python project directories with predefined submodules (either single Python files or directories with a __init__.py file — from Python’s or Django’s point of view, there is no difference). Theoretically, a Django project does not need to be split into smaller apps. But the split improves clarity, separation of concerns and code reuse. Imagine the difference like this:

A Django project is the full server application, while a Django app is a focused domain module inside that project. In OpenBook, apps are the unit for organizing data models, admin integration, REST API endpoints, and migration history around one bounded topic. Therefore, the first step when implementing a new feature is either to find the right app to extend or to create a new app from scratch. This tutorial shows how to do the latter.

Create and Register a New App

Create the app with Django, then place it under src/openbook with a short, domain-specific name. After that, register it in INSTALLED_APPS in src/openbook/settings.py so migrations, admin discovery, and app startup hooks run automatically.

Imagine we wanted to create a new app for tracking learning progress. The typical process would be:

cd src
python manage.py startapp learning_goals openbook/progress

Then add the app import path to INSTALLED_APPS:

INSTALLED_APPS = [
    "openbook.core",
    "openbook.auth",
    "openbook.content",

    # New entry for the new app
    "openbook.learning_progress",

    # Existing entries for 3rd-party apps ...
]

A typical app layout looks like this:

src/openbook/learning_progress/
├── __init__.py
├── apps.py
├── routes.py
├── migrations/
│   ├── __init__.py
│   └── 0001_initial.py
├── models/
│   ├── __init__.py
│   └── learning_goal.py
├── admin/
│   ├── __init__.py
│   └── learning_goal.py
├── viewsets/
│   ├── __init__.py
│   └── learning_goal.py
└── fixtures/
    └── openbook_learning_progress/
        └── example_learning_goals.yaml

In practice, model-heavy apps often grow with additional modules such as tests, custom management commands, signals, or service classes. Start with the structure above and extend it only when needed.

Note

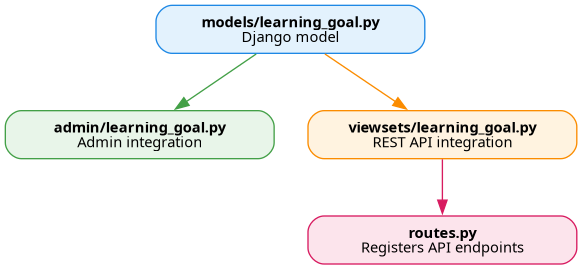

Note the many files named learning_goal.py or similar. As we will see in the subsequent tutorials, most feature apps revolve around database models that are exposed in the Django admin and the REST API. The three directories models/, admin/, and viewsets/ serve exactly this purpose. To simplify navigation, each file is concerned with exactly one model (from a user’s perspective), and we mirror the file structure between most directories.

Mirrored source structure for the model and all layers above

Define apps.py With Explicit Metadata

Next you need to expose an AppConfig with a stable name and explicit label. Though not strictly required, the label is important because OpenBook uses app labels in places like fixture model names and generic scope references.

Create the file apps.py inside the app directory with the following content:

from django.apps              import AppConfig
from django.utils.translation import gettext_lazy as _


class ProgressApp(AppConfig):
    name = "openbook.learning_progress"
    label = "openbook_learning_progress"
    verbose_name = _("Learning Progress")

Note

Note the pattern for the class attribute values. The app name and label must follow conventions similar to Python module names: no spaces, start with a letter, snake_case capitalization, etc. The name is always openbook.<app_label>, and the app label is openbook_ followed by the package name.

The verbose name is used in the admin and in other places in the UI. So it must be marked with _() as a translatable text.

Register API Routes in routes.py

OpenBook app structure focuses on models, admin, and REST APIs. We do not define server-rendered pages and thus typically do not have app-level urls.py files. Instead, each app provides API routes through routes.py, and the project registers them from src/openbook/urls.py. To this end, each app must expose a register_api_routes() function in routes.py that registers the URL routes for the REST API endpoints.

Example:

from .viewsets.goal import GoalViewSet


def register_api_routes(router, prefix):
    # Will be filled in later, when REST API viewsets are defined
    pass

Then wire the app-level route registration into src/openbook/urls.py like so:

# Existing imports ...
from .learing_progress.routes import register_api_routes as register_learning_progress_api_routes

# Existing register_<app_label>_api_routes
register_learning_progress_api_routes(api_router, "learning_progress")

Note

Note again the pattern, where the app label is used for consistent naming.

Checklist Before Moving On

Before implementing models and APIs, verify that:

1. The app lives under src/openbook/<app_name>.

2. The app is listed in INSTALLED_APPS.

3. apps.py defines name, label, and verbose_name.

4. routes.py exposes register_api_routes().

5. src/openbook/urls.py imports and calls your route registration function.

Creating New Models

Models are the heart of each Django app. They define the database schema, enforce data integrity, and provide the Python interface for all persistent data. In OpenBook, every major domain concept gets its own model file inside the app’s models/ directory, mirroring the structure of the admin/ and viewsets/ directories that build on top of it.

Create the Model

Create one Python file per domain concept inside models/. Closely related helper models — such as a translation companion for internationalised text fields — live in the same file. Continuing the learning progress example, let’s add models/learning_goal.py.

Each model class is built by inheriting the appropriate mixin classes together with any domain-specific fields. A minimal starting point looks like this:

from django.db                          import models
from django.utils.translation           import gettext_lazy as _

from openbook.core.models.mixins.uuid   import UUIDMixin
from openbook.core.models.mixins.text   import NameDescriptionMixin
from openbook.core.models.mixins.active import ActiveInactiveMixin
from openbook.auth.models.mixins.audit  import CreatedModifiedByMixin


class LearningGoal(UUIDMixin, NameDescriptionMixin, ActiveInactiveMixin, CreatedModifiedByMixin):
   """A course-specific learning goal with a Bloom taxonomy level."""

   class LevelChoices(models.TextChoices):
      REMEMBER   = "remember",   _("Remember")
      UNDERSTAND = "understand", _("Understand")
      APPLY      = "apply",      _("Apply")
      ANALYZE    = "analyze",    _("Analyze")
      EVALUATE   = "evaluate",   _("Evaluate")
      CREATE     = "create",     _("Create")

   course = models.ForeignKey(
      "openbook_content.Course",
      verbose_name = _("Course"),
      on_delete    = models.CASCADE,
      related_name = "learning_goals",
   )

   level = models.CharField(
      verbose_name = _("Learning Level"),
      max_length   = 16,
      choices      = LevelChoices,
      default      = LevelChoices.UNDERSTAND,
   )

   class Meta:
      verbose_name        = _("Learning Goal")
      verbose_name_plural = _("Learning Goals")
      ordering            = ("course", "name")

   def __str__(self):
      return f"{self.name} ({self.get_level_display()})"

Always list UUIDMixin first in the inheritance chain, followed by other core mixins, and auth mixins last. This order keeps Python’s Method Resolution Order (MRO) predictable and ensures that the save() and clean() overrides defined in each mixin chain correctly through super().

Note how model fields are declared as class attributes using Django’s models. classes. Each field type maps to a Python value type and a database column type, e.g. models.CharField for short text, models.TextField for longer text, models.BooleanField for true/false flags, and models.ForeignKey for relations.

Hint

In OpenBook, prefer explicit verbose_name values wrapped in _() for all user-facing fields, so labels in admin forms and API-driven UIs stay consistent and translatable. Also use get_level_display() in __str__() whenever a field defines choices. This returns the human-readable (and translated) label instead of the raw stored value.

See also

Django model field reference: https://docs.djangoproject.com/en/stable/ref/models/fields/

Common field options: https://docs.djangoproject.com/en/stable/ref/models/fields/#field-options

Add Meta Class and Utility Methods

Every model must define an inner Meta class with at least verbose_name and verbose_name_plural. Both values must be wrapped in _() for translation. Add ordering to define a sensible default sort order, and declare indexes and constraints as the domain requires.

Additionally, provide a __str__() method so the model displays as a human-readable string in the admin and in log output. When NameDescriptionMixin is included it already supplies a __str__() that returns self.name, so override it only when the default output is not descriptive enough. ActiveInactiveMixin provides a companion __str__() that returns "(inactive)" when the object is inactive, which you can compose into a richer string like shown below.

class LearningGoal(UUIDMixin, CreatedModifiedByMixin):
   # Field definitions ...

   class Meta:
      verbose_name        = _("Learning Goal")
      verbose_name_plural = _("Learning Goals")
      ordering            = ("course", "name")

      indexes = [
         models.Index(fields=("course", "name")),
      ]

   def __str__(self):
      return f"{self.name} {ActiveInactiveMixin.__str__(self)}".strip()

On top of that, you may override additional methods to fine-tune model behaviour as well as add domain logic in additional freestyle methods. But always consider that domain-logic methods may modify a model instance’s values but should not call save() to persist the changes. Calling save() or any other method that modifies the database should be handled at the call site.

Add Companion Models for Translations etc.

Many OpenBook domain models need language-specific texts. In those cases, keep the main model language-neutral and store translatable texts in a companion model in the same source file. This keeps core business fields stable while allowing any number of translations per object. Use this pattern for companion translation models:

1. Inherit from UUIDMixin and TranslatableMixin.

2. Add a parent foreign key to the main model with related_name="translations".

3. Add only the fields that are truly language-dependent.

4. Inherit the companion model Meta class from TranslatableMixin.Meta.

Example:

class LearningGoal(UUIDMixin, NameDescriptionMixin, CreatedModifiedByMixin):
   # Main, language-neutral fields here
   pass


class LearningGoalText(UUIDMixin, TranslatableMixin):
   parent = models.ForeignKey(
      LearningGoal,
      on_delete    = models.CASCADE,
      related_name = "translations",
   )

   short_title = models.CharField(verbose_name=_("Short Title"), max_length=255)
   summary     = models.TextField(verbose_name=_("Summary"), blank=True, default="")

   class Meta(TranslatableMixin.Meta):
      verbose_name        = _("Learning Goal Text")
      verbose_name_plural = _("Learning Goal Texts")

Keep translation companion models close to their parent model in structure and naming so that admin, API serializers, and tests can follow the same conventions across apps.

Export From models/__init__.py

After creating the model file, import all classes in models/__init__.py so Django’s app registry discovers it during startup and migration commands include it:

from .learning_goal import LearningGoal
from .learning_goal import LearningGoalText

Available Core Model Mixins

The core app provides abstract mixin classes in openbook.core.models.mixins that capture common model patterns. UUIDMixin must always appear first in the inheritance chain. Beyond that, inherit only the mixins that match the model’s actual requirements.

UUID primary key — UUIDMixin replaces Django’s default auto-increment integer primary key with a UUID. Including this mixin first in the MRO is mandatory for all OpenBook models. It prevents predictable IDs in API responses and URLs, and avoids accidental enumeration of resources by external clients.

Name and description — NameDescriptionMixin adds name, description, and text format fields, where the description can be plain text, HTML, or Markdown. Provides a __str__() that returns self.name and a get_formatted_description() helper for rendering.

Active/inactive flag — ActiveInactiveMixin adds an is_active boolean field. Its __str__() returns the string “(inactive)” when the object is not active, which is useful for composing a richer __str__() on the main model.

Validity time span — ValidityTimeSpanMixin adds start and end date fields with built-in validation that the end date comes after the start date. Use this for content that is only valid within a defined calendar window.

Duration — DurationMixin adds a duration expressed in configurable units: minutes, hours, days, weeks, months, or years. Use this for time-boxed activities such as assignments or timed exercises.

URL-friendly slug — UniqueSlugMixin and NonUniqueSlugMixin each add a slug field. Use the globally unique variant when the slug must never repeat across the whole table. Use the context-scoped variant together with a UniqueConstraint in the model’s Meta class when uniqueness only applies within a parent context, for example a slug that must be unique per course but not globally.

Translation companion marker — TranslatableMixin marks a companion model as a set of translations for a parent model. Create a separate class holding the translatable text fields and use the provided LanguageField helper for the language reference. See the companion translations pattern later in this section for a full example.

File upload metadata — FileUploadMixin is for models that store uploaded files. It automatically populates file name, file size, and MIME type fields when the model is saved.

Additional Auth Model Mixins

In addition to the core mixins, the auth app adds mixins that connect models to the role-based permission system. These live in openbook.auth.models.mixins.

Audit trail — CreatedModifiedByMixin records who created and last modified an object, and when. The overridden save() reads the currently logged-in user from the request context and populates these fields automatically. Add this mixin to most non-trivial models to support auditing and accountability.

Permission scope boundary — ScopedRolesMixin makes the model itself a top-level permission scope. A scope owns an owner and carries relations for roles, role assignments, enrollment methods, access requests, and public permissions. Use this only for container objects such as courses — models that define a permission boundary for everything they contain.

Scope membership — ScopeMixin is for models that belong to a scope rather than define one. It adds generic foreign key fields pointing at the parent scope object. This is used internally by models such as enrollment methods and access requests.

Object-level permission check — RoleBasedObjectPermissionsMixin adds a has_obj_perm() method for checking object-level permissions on composite models, for example course materials, where permission checks should be delegated to a parent scope. Override get_scope() to return the parent object.

Note

In practice most feature models inherit UUIDMixin, one or two content-describing core mixins, and CreatedModifiedByMixin. Only top-level container objects that define a permission boundary, like courses, also need ScopedRolesMixin.

Common Field Options

In practice, most field declarations combine a type with options such as verbose_name, default, choices, null, blank, db_index, unique, help_text, and related_name (for relations). Use these options intentionally, because each one affects validation, database constraints, query performance, or API behavior.

Human-readable label — Always supply an explicit verbose_name wrapped in _() so the label is translatable. It appears in admin forms, error messages, and API schema documentation. Without it Django generates a label from the attribute name, which can be misleading (for example "course_id" instead of "Course").

Database nullability vs. form emptiness — null controls whether the database column may store NULL; blank controls whether Django forms and serializers accept an empty value. For text fields, prefer null=False and blank=True when the value is optional, so you store an empty string rather than mixing two representations of “no value” in the same column. For non-text fields such as date and time fields, model optional values with both null=True and blank=True.

Uniqueness vs. query performance — Use unique=True only when duplicates must be impossible by business rule, for example a globally unique external ID. That constraint already creates a database index as a side effect. When duplicate values are allowed but lookups are frequent — for example filtering by status or slug — use db_index=True instead.

Safe initial values — Add a default only when there is one genuinely correct initial value for the domain. Avoid hiding missing data with an arbitrary default.

Fixed enumerations — Use choices for small, stable sets of values such as workflow states, taxonomy levels, or category sets. Define the choices as an inner class on the model so they travel with the model and are easy to reference from tests and serializers.

Editorial guidance — Add help_text for any field where an editor might misunderstand the expected meaning or format. The text appears as a hint beneath the widget in admin forms.

Reverse relation name — Always set an explicit related_name on foreign keys and many-to-many fields. A clear name keeps reverse lookups readable and avoids clashes when the same model is referenced from multiple places.

Example patterns:

class ExampleModel(UUIDMixin, CreatedModifiedByMixin):
   title = models.CharField(
      verbose_name = _("Title"),
      max_length   = 255,
      blank        = True,
      default      = "",
   )

   available_until = models.DateTimeField(
      verbose_name = _("Available Until"),
      null         = True,
      blank        = True,
   )

   external_id = models.CharField(
      verbose_name = _("External Id"),
      max_length   = 64,
      unique       = True,
   )

   status = models.CharField(
      verbose_name = _("Status"),
      max_length   = 32,
      db_index     = True,
      choices      = StatusChoices,
   )

   course = models.ForeignKey(
      "openbook_content.Course",
      verbose_name = _("Course"),
      on_delete    = models.CASCADE,
      related_name = "learning_goals",
   )

Create Migrations

After defining or changing models, create a migration file and apply it to the database. In OpenBook, do this from the src/ directory so manage.py can discover the project settings and app registry correctly.

Run makemigrations for your app label first. Continuing the example from above, that label is openbook_learning_progress:

cd src
python manage.py makemigrations openbook_learning_progress

This creates a new migration file under migrations/ (for example 0002_add_learning_goal_level.py) whenever Django detects schema changes. When you update models later, run the same command again. Django then creates the next numbered migration file that captures only the new changes.

Apply all unapplied migrations with migrate:

python manage.py migrate

To verify migration state for one app, use:

python manage.py showmigrations openbook_learning_progress

The output marks applied migrations with [X] and pending ones with [ ].

Important

Do not edit or rewrite existing migration history after it has been shared with other developers. Instead, create a new migration that moves the schema from the current state to the next state.

Hint

Before committing, run makemigrations once more to ensure no model changes are left without a migration file.

Checklist Before Moving On

Before you continue with admin and API integration, verify that:

1. The model is placed in the correct file under models/ (one concept plus companion models).

2. Required core/auth mixins are inherited, with UUIDMixin first.

3. User-facing labels (verbose_name and choice labels) are wrapped in _().

4. Field options are intentional, especially null vs blank and unique vs db_index.

5. Meta includes at least verbose_name and verbose_name_plural, plus optional ordering/indexes.

6. __str__() returns a concise, human-readable identifier.

7. The model is imported in models/__init__.py.

8. Migrations have been created and tested.

Adding Models to the Admin

Django Admin is the primary tool for administrators and developers to inspect live data, diagnose problems, and create test content during development before a full UI exists. For this reason, every model should have an admin integration. The work follows the same file-mirroring pattern as models and viewsets: one source file per domain concept in the admin/ directory, wired together through __init__.py.

Create the Admin File

To integrate a model into the Django Admin, create a new file in the admin/ directory with the same name as its source file in the models/ directory. Within the new file, define a class that inherits from CustomModelAdmin, imported from openbook.admin. This base class combines three things, which is why, unlike in traditional Django projects, you never touch Django’s built-in ModelAdmin class directly:

1. Django Unfold for the styled admin UI, and

2. DjangoQL for advanced search expressions in the change list,

3. Django Import/Export for CSV, YAML, and XLSX data exchange.

A minimal admin class needs only the model, list_display, ordering, and search_fields properties to link it to the model class and name the fields used in the overview list. Again, using learning goals as an example, the file would be named admin/learning_goal.py (like the model file) and have the following content:

from openbook.admin         import CustomModelAdmin
from ..models.learning_goal import LearningGoal


class LearningGoalAdmin(CustomModelAdmin):
    """Admin view for learning goals."""
    model         = LearningGoal
    list_display  = ["name", "course", "level", "is_active"]
    ordering      = ["course", "name"]
    search_fields = ["name", "course__name"]

This is already functional: the change list shows the configured columns, results are sortable and searchable, and the default form — not declared in the class — renders all editable fields. Isn’t Django great? 🙂

Important

Always import models from the file in which they are defined, e.g. ..models.learning_goal. Never import them from ..models to reduce the risk of circular imports.

Register in __init__.py

Once the class exists, register it in admin/__init__.py:

from openbook.admin import admin_site
from .learning_goal import LearningGoalAdmin
from ..             import models

admin_site.register(models.LearningGoal, LearningGoalAdmin)

The order of register() calls determines the order in which models appear in the admin sidebar. So, register models in a logical order that makes sense to administrators.

Configuring the Change List

The following admin class attributes control the change list behaviour. Look at other admin classes nearby to see how they are typically used and play around with their values to achieve best results.

Important

We treat the admin as a first-class citizen, as if it was the primary user interface for all users. Because, for administrators it really is the primary user interface to work with the models.

Visible columns — list_display sets which fields appear as columns. Keep it focused: show the fields needed to identify and distinguish records at a glance.

Clickable links — list_display_links specifies which columns act as links to the edit page. Without it, only the first column is a link by default. To simplify navigation a little, try to make all fields clickable.

Related field prefetching — list_select_related names the Foreign Key fields that Django should join in the same query as the list, avoiding one extra query per row. This usually enhances performance considerably.

Default sort — ordering sets the default sort order for the change list. Mirror the ordering declared in the model’s Meta class to keep behaviour consistent.

Full-text search — search_fields drives the DjangoQL search bar. Use double underscore notation to traverse relations: "course__name" searches the related course’s name.

Filter sidebar — list_filter populates the right-hand filter panel. Use plain field names for simple boolean or choice fields, and (field, RelatedOnlyFieldListFilter) tuples for Foreign Key fields where you want to restrict the list to values that are actually in use.

Read-only fields — readonly_fields marks fields that should be visible in the edit form but cannot be changed by the admin user. Always include the audit trail field names here so they are visible but protected from accidental edits.

Audit Trail Integration

When a model uses CreatedModifiedByMixin, import the four helper constants from openbook.auth.admin.mixins.audit and spread them into the relevant admin class attributes:

from openbook.auth.admin.mixins.audit import created_modified_by_fields
from openbook.auth.admin.mixins.audit import created_modified_by_fieldset
from openbook.auth.admin.mixins.audit import created_modified_by_filter
from openbook.auth.admin.mixins.audit import created_modified_by_related


class LearningGoalAdmin(CustomModelAdmin):
    """Admin view for learning goals."""
    model               = LearningGoal
    resource_classes    = [LearningGoalResource]
    list_display        = ["name", "course", "level", "is_active", *created_modified_by_fields]
    list_select_related = [*created_modified_by_related]
    list_filter         = ["level", "is_active", *created_modified_by_filter]
    readonly_fields     = [*created_modified_by_fields]
    ordering            = ["course", "name"]
    search_fields       = ["name", "course__name"]

The four constants expand as follows:

Column names — created_modified_by_fields is a list of four field names: created_by, created_at, modified_by, and modified_at. Spread it into list_display to show audit columns in the change list, and into readonly_fields to prevent manual edits.

Prefetch hints — created_modified_by_related lists the two Foreign Key names for the user relations. Spread it into list_select_related to avoid N+1 queries when the list renders.

Filter sidebar — created_modified_by_filter is a list of filter entries (plain strings and (field, FilterClass) tuples). Spread it into list_filter.

Fieldset — created_modified_by_fieldset is a ready-made fieldset tuple rendered as a tab. Always append it as the last entry in fieldsets.

Organising the Edit Form with Fieldsets

By default Django Admin renders all editable fields in a single unstyled block. Fieldsets group fields into named sections and can optionally render as Django Unfold tabs, making longer forms easier to navigate. To this end, define fieldsets for the edit/change view and optionally – when different – add_fieldsets for the create view.

Caution

When both fieldsets and add_fieldsets are present, the two must not be identical. The latter must omit auto-populated fields such as the audit trail, because those fields do not exist yet on first save and their presence causes a crash.

class LearningGoalAdmin(CustomModelAdmin):
    """Admin view for learning goals."""
    # ... list attributes from above ...

    fieldsets = [
        (None, {
            "fields": [
                ("course", "level"),
                ("name", "is_active"),
            ],
        }),
        (_("Description"), {
            "classes": ["tab"],
            "fields": ["description", "text_format"],
        }),
        created_modified_by_fieldset,
    ]

    # The same as fieldsets but without created_modified_by_fieldset.
    # Can be omitted for models with no readonly fields
    add_fieldsets = [
        (None, {
            "fields": [
                ("course", "level"),
                ("name", "is_active"),
            ],
        }),
        (_("Description"), {
            "classes": ["tab"],
            "fields": ["description", "text_format"],
        }),
    ]

A few conventions to follow:

Field grouping — Pass a tuple inside the "fields" list to place multiple fields side by side on the same row: ("course", "level") renders both on one line.

Tabs — Add "classes": ["tab"] to a fieldset to render it as a Django Unfold tab. Use tabs for secondary or less frequently edited groups such as description text, validity settings, or audit information.

Audit fieldset — Always end fieldsets with created_modified_by_fieldset when the model uses CreatedModifiedByMixin. Never include it in add_fieldsets.

Inline Views

Related objects such as translation companion models can be embedded directly in the parent model’s change page using inline classes. This is more ergonomic than requiring administrators to navigate to a separate list to manage translations. To do so, define a TabularInline (or StackedInline for more complex layouts) in the same admin file and reference it in the parent admin class via inlines:

from unfold.admin           import TabularInline
from ..models.learning_goal import LearningGoalText


class _LearningGoalTextInline(TabularInline):
    """Inline for translated texts of a learning goal."""
    model               = LearningGoalText
    fields              = ["language", "short_title", "summary"]
    ordering            = ["language"]
    extra               = 0
    show_change_link    = True
    tab                 = True
    verbose_name        = _("Translation")
    verbose_name_plural = _("Translations")


class LearningGoalAdmin(CustomModelAdmin):
    """Admin view for learning goals."""
    # ...
    inlines = [_LearningGoalTextInline]

Our conventions are:

No empty placeholder — Always set extra to 0 to suppress the empty placeholder rows that Django renders by default.

Link to full admin page – If the inlined model has a proper admin page, set show_change_link to True so that administrators can open the inline record on its own page for more detailed work.

Render as tabs — Consider setting tab to True to render the inline as a separate Django Unfold tab, keeping the main form uncluttered.

Prefix private classes — Prefix inline class names with an underscore to signal that they are private implementation details of the file.

Import/Export Support

In OpenBook, every admin class should support file-based data import/export so that administrators can export data for review, import test data, or migrate entries between environments. This requires a resource class that must be derived from ImportExportModelResource (in openbook.admin) and declare the field list in its inner Meta class. Wire it into the admin class via the resource_classes property like so:

from openbook.admin         import CustomModelAdmin
from openbook.admin         import ImportExportModelResource
from ..models.learning_goal import LearningGoal


class LearningGoalResource(ImportExportModelResource):
    """Import/export resource for learning goals."""
    class Meta:
        model  = LearningGoal
        fields = [
            "id", "delete",
            "course", "name", "level", "is_active",
            "description", "text_format",
        ]


class LearningGoalAdmin(CustomModelAdmin):
    """Admin view for learning goals."""
    model            = LearningGoal
    resource_classes = [LearningGoalResource]   # Resource class above
    list_display     = ["name", "course", "level", "is_active"]
    ordering         = ["course", "name"]
    search_fields    = ["name", "course__name"]

Note

Mind the square brackets around the resource class.

Always include "id" and "delete" as the first two fields. The delete column is a convention from ImportExportModelResource that lets users mark rows for deletion (provided the file rows contain valid IDs) by setting the value in the file to true.

For foreign keys, boolean fields, or many-to-many fields that cannot be represented as plain text, add a Field declaration with an appropriate widget class. The advanced patterns subsection covers this for scope-related fields.

See also

Advanced Import/Export patterns: https://django-import-export.readthedocs.io/en/latest/advanced_usage.html

Advanced: Scope-specific Patterns

Models that use ScopeMixin (i.e. belong to a permission scope) or ScopedRolesMixin (i.e. define a permission scope) require additional mixins for the form and resource classes. All of these live in openbook.auth.admin.mixins.scope.

Scope-member models — When a model references a scope via ScopeMixin, inherit the resource class from ScopeResourceMixin instead of ImportExportModelResource. This mixin handles import and export of the scope reference, resolving scope objects by slug during import. For the form, inherit from ScopeFormMixin to replace the raw UUID widget with a dynamically loaded select box that shows scope objects by name and restricts scope type choices to valid options.

from openbook.auth.admin.mixins.scope import ScopeFormMixin
from openbook.auth.admin.mixins.scope import ScopeResourceMixin


class EnrollmentMethodResource(ScopeResourceMixin):
    class Meta:
        model  = EnrollmentMethod
        fields = [
            "id", "delete",
            *ScopeResourceMixin.Meta.fields,
            "name", "role", "is_active",
        ]


class EnrollmentMethodForm(ScopeFormMixin):
    class Meta:
        model  = EnrollmentMethod
        fields = "__all__"


class EnrollmentMethodAdmin(CustomModelAdmin):
    form             = EnrollmentMethodForm
    resource_classes = [EnrollmentMethodResource]
    # ...

Scope-owner models — When a model defines a permission scope via ScopedRolesMixin, inherit the resource class from ScopedRolesResourceMixin to handle export of the owner and public permissions fields. For the form, inherit from ScopedRolesFormMixin to restrict visible permissions to those allowed for the scope type.

from openbook.admin                   import ImportExportModelResource
from openbook.auth.admin.mixins.scope import ScopedRolesFormMixin
from openbook.auth.admin.mixins.scope import ScopedRolesResourceMixin


class CourseResource(ScopedRolesResourceMixin, ImportExportModelResource):
    class Meta:
        model  = Course
        fields = [
            "id", "delete",
            "slug", "name",
            *ScopedRolesResourceMixin.Meta.fields,
        ]


class CourseForm(ScopedRolesFormMixin):
    class Meta:
        model  = Course
        fields = "__all__"


class CourseAdmin(CustomModelAdmin):
    form             = CourseForm
    resource_classes = [CourseResource]
    # ...

Important

Note that ScopedRolesResourceMixin must come before ImportExportModelResource in the inheritance chain so that its field declarations take precedence.

Scope-role fields — Models that combine a scope reference with a role field additionally need ScopeRoleFieldFormMixin on the form class to restrict the role choices to roles defined within the selected scope. The corresponding inline class should inherit ScopeRoleFieldInlineMixin to apply the same restriction inside inline forms.

from django.contrib.contenttypes.admin import GenericTabularInline
from unfold.admin                       import TabularInline

from openbook.auth.admin.mixins.scope   import ScopeFormMixin
from openbook.auth.admin.mixins.scope   import ScopeRoleFieldFormMixin
from openbook.auth.admin.mixins.scope   import ScopeRoleFieldInlineMixin


class EnrollmentMethodForm(ScopeFormMixin, ScopeRoleFieldFormMixin):
    class Meta:
        model  = EnrollmentMethod
        fields = "__all__"

    class Media:
        css = {"all": [*ScopeFormMixin.Media.css["all"], *ScopeRoleFieldFormMixin.Media.css["all"]]}
        js  = [*ScopeFormMixin.Media.js, *ScopeRoleFieldFormMixin.Media.js]


class EnrollmentMethodInline(ScopeRoleFieldInlineMixin, GenericTabularInline, TabularInline):
    model       = EnrollmentMethod
    ct_field    = "scope_type"
    ct_fk_field = "scope_uuid"
    fields      = ["name", "role", "is_active"]
    extra       = 0

When both ScopeFormMixin and ScopeRoleFieldFormMixin are needed, merge their Media declarations explicitly as shown above. The same form class is then wired into the admin class via the form attribute.

The module also exports the helper constants scope_type_filter and permissions_fieldset, which can be spread into list_filter and fieldsets respectively, in the same way as the audit trail helpers.

from openbook.auth.admin.mixins.scope import permissions_fieldset
from openbook.auth.admin.mixins.scope import scope_type_filter


class CourseAdmin(CustomModelAdmin):
    list_filter = [
        scope_type_filter,
        # ...
    ]

    fieldsets = [
        # ...
        permissions_fieldset,
        created_modified_by_fieldset,
    ]

Checklist Before Moving On

Before continuing to REST API integration, verify that:

1. The admin file is placed under admin/, mirroring the model file path.

2. The admin class inherits from CustomModelAdmin.

3. A resource class is defined and listed in resource_classes.

4. Audit trail constants are used when CreatedModifiedByMixin is in the model’s MRO.

5. readonly_fields includes the audit trail field names.

6. Both fieldsets and add_fieldsets are defined, and add_fieldsets omits the audit fieldset.

7. Companion models (e.g. translations) are covered by an inline class.

8. The admin class is registered in admin/__init__.py in the correct position.

See also

Django Admin reference: https://docs.djangoproject.com/en/stable/ref/contrib/admin/

ModelAdmin list display options: https://docs.djangoproject.com/en/stable/ref/contrib/admin/#modeladmin-options

Django Admin actions: https://docs.djangoproject.com/en/stable/ref/contrib/admin/actions/

Django Import/Export documentation: https://django-import-export.readthedocs.io/en/latest/

Exposing Models in the REST API

OpenBook uses Django REST Framework to build a REST API that the frontend and external clients can consume. To pull this off, every model needs three things:

1. a ViewSet that handles HTTP requests,

2. a Serializer that translates between Python objects and JSON, and

3. a FilterSet class that enables clients to query the list endpoint.

Building on the previous tutorials, this section explains how to work with Django REST Framework and some OpenBook utilities to expose a model through the REST API.

Create the ViewSet

In this tutorial we are using the learning goals model from the tutorials above and expose it via the REST API. To do so, create a file called viewsets/learning_goal.py, again following the convention to mirror the file structure of the models/ and admin/ directories, and put the following minimal ViewSet inside:

from drf_spectacular.utils   import extend_schema
from rest_framework.viewsets import ModelViewSet

from openbook.drf.viewsets   import ModelViewSetMixin
from openbook.drf.viewsets   import with_flex_fields_parameters
from ..models.learning_goal  import LearningGoal


@extend_schema(
    extensions={
        "x-app-name":   "Learning Progress",
        "x-model-name": "Learning Goals",
    }
)
@with_flex_fields_parameters()
class LearningGoalViewSet(ModelViewSetMixin, ModelViewSet):
    __doc__ = "Learning goals for a course"

    queryset         = LearningGoal.objects.all()
    serializer_class = LearningGoalSerializer   # not yet defined
    filterset_class  = LearningGoalFilter       # not yet defined
    ordering         = ["course", "name"]
    search_fields    = ["name", "description", "course__name"]

Note

We will cover the LearningGoalSerializer and LearningGoalFilter classes soon. They must be defined at the beginning of the same file for the example to work.

From top to bottom, this code snippet does the following:

OpenAPI schema extension — The class decorator @extend_schema() adds a new section to the OpenAPI web service documentation. This keeps all related endpoints concerning a given model nicely together in the API browser. Similarly, the __doc__ attribute defines the long description shown in the documentation.

Flex fields parameters — The class decorator @with_flex_fields_parameters() adds the _fields, _omit, and _expand query parameters to the OpenAPI schema so clients know how to request only the fields they need. The implementation is handled by the filterset class.

Mixin and base class — The ViewSet class must inherit from ModelViewSetMixin and ModelViewSet in exactly this order. The order is important so that the mixin can fill and validate the model instance before saving, which in turn allows Django’s object-level permission checks to run during creation — when no database record exists yet.

Queryset — queryset defines the base database query for all actions. Almost always you want to set it to <Model>.objects.all(). This defines the maximum data that someone with all permissions can retrieve. Django REST Framework automatically adds further filters for permissions and more.

Serializer and FilterSet classes — serializer_class points to the serializer that converts model instances to JSON and validates incoming data. filterset_class points to the filter class that parses the URL query parameters and narrows the queryset accordingly. Both are defined in the same file and covered in detail in the sections below.

Ordering — ordering sets the default sort order for list responses. Mirror the ordering declared in the model’s Meta class so that the API and the admin behave consistently. Clients can override the sort order at request time using the ordering query parameter.

Search fields — search_fields drives the full-text search available via the search query parameter. Use double-underscore notation to traverse relations, e.g. "course__name" to search the name of the related course. Keep this list focused on the fields that are meaningful for users to search by.

Hint

In OpenBook, models by default are not accessible without authentication and proper permissions. This makes sense most of the time, but doesn’t work for the landing page and other public areas.

If your model must be accessible without login, add AllowAnonymousListRetrieveViewSetMixin before ModelViewSetMixin in the inheritance chain. This mixin returns AllowAny permissions for the list and retrieve actions while delegating all other permission checks to the ViewSet’s default permission classes.

Create the Serializer

A ViewSet class handles HTTP requests and maps them to RESTful endpoints. But it doesn’t know how to represent a model’s data in a data format like JSON or how to convert raw JSON data back into a model instance. These tasks are delegated to Serializer classes.

In OpenBook Serializer classes are tightly coupled to the ViewSets. For this reason we keep both in the same file, defining the Serializer first (because in Python a class cannot be used before it is defined). As a second peculiarity, OpenBook integrates the drf-flex-fields2 library to allow clients to request only those fields they need. A basic implementation looks like this:

from openbook.drf.flex_serializers  import FlexFieldsModelSerializer
from openbook.auth.serializers.user import UserField
from ..models.learning_goal         import LearningGoal


class LearningGoalSerializer(FlexFieldsModelSerializer):
    __doc__ = "Learning Goal"

    created_by  = UserField(read_only=True)
    modified_by = UserField(read_only=True)

    class Meta:
        model = LearningGoal

        fields = [
            "id", "course",
            "name", "description", "text_format",
            "level", "is_active",
            "created_by", "created_at", "modified_by", "modified_at",
        ]

        read_only_fields = ["id", "created_at", "modified_at"]

        expandable_fields = {
            "course":      "openbook.content.viewsets.course.CourseSerializer",
            "created_by":  "openbook.auth.viewsets.user.UserSerializer",
            "modified_by": "openbook.auth.viewsets.user.UserSerializer",
        }

As a bare minimum, serializer classes must contain an inner Meta class with the model property. Everything else is, in theory, optional. Still, we follow the following conventions:

Explicit field list — Always declare fields explicitly to prevent accidentally exposing sensitive model data. Never use "__all__". Start the list with "id" and end with the audit trail fields so the JSON output is predictable and consistent across all endpoints.

Explicit read-only fields — Declare read_only_fields for every field that must not be writable via the API. At a minimum this includes "id", "created_at", and "modified_at", since they are populated automatically by the database or by CreatedModifiedByMixin.

Expandable fields — By default, foreign keys are returned with their raw database values. However, OpenBook allows the client to append something like ?_expand=course to the request URL to expand them into full nested objects. This is enabled by expandable_fields which references the dotted import path string of the respective Serializers. For many-to-many relations, use the tuple form with {"many": True} as the second element:

expandable_fields = {
    "permissions": ("openbook.auth.viewsets.permission.PermissionSerializer", {"many": True}),
}

Important

Always reference serializers from other files with dotted import path strings, as shown above. Never directly import the serializers to avoid circular imports, which are not allowed in Python.

Custom serializer fields — For Foreign Key fields where a raw ID is not meaningful to API consumers, add custom field classes as shown above with created_by and modified_by. The auth app ships several ready-made fields for the most common cases:

• UserField returns the username,

• RoleField returns the role slug, and

• ScopeTypeField returns the fully-qualified model string such as "openbook_content.course".

The same pattern – a custom field class that overrides to_internal_value() and to_representation() – can be applied to any foreign key that needs a human-readable representation. But only spend the time when it has clear advantages, not just because UUIDs don’t look pretty.

Hint

For scope-owner models that implement ScopedRolesMixin, inherit ScopedRolesSerializerMixin before FlexFieldsModelSerializer. This mixin injects the owner, public_permissions, role_assignments, enrollment_methods, and access_requests fields along with their expandable variants. Spread its Meta field lists to avoid duplication:

from openbook.auth.serializers.mixins.scope import ScopedRolesSerializerMixin


class CourseSerializer(ScopedRolesSerializerMixin, FlexFieldsModelSerializer):
   created_by  = UserField(read_only=True)
   modified_by = UserField(read_only=True)

   class Meta:
      model = Course

      fields = [
            "id", "slug", "name", "description", "text_format",
            *ScopedRolesSerializerMixin.Meta.fields,
            "created_by", "created_at", "modified_by", "modified_at",
      ]

      read_only_fields = [
            "id",
            *ScopedRolesSerializerMixin.Meta.read_only_fields,
            "created_at", "modified_at",
      ]

      expandable_fields = {
            **ScopedRolesSerializerMixin.Meta.expandable_fields,
            "created_by":  "openbook.auth.viewsets.user.UserSerializer",
            "modified_by": "openbook.auth.viewsets.user.UserSerializer",
      }

Create the Filter Class

In OpenBook every ViewSet class references a FilterSet class defined in the same file so clients can not only request a list of model entries but search and narrow the list with query parameters. For this the FilterSet class inherits one or more optional mixin classes followed by FilterSet as the very last base class. Again, the ordering is important.

from django_filters.filterset           import FilterSet
from openbook.auth.filters.mixins.audit import CreatedModifiedByFilterMixin
from ..models.learning_goal             import LearningGoal


class LearningGoalFilter(CreatedModifiedByFilterMixin, FilterSet):
    class Meta:
        model  = LearningGoal
        fields = {
            "course":    ("exact",),
            "level":     ("exact",),
            "is_active": ("exact",),
            **CreatedModifiedByFilterMixin.Meta.fields,
        }

The fields dictionary maps field names to tuples of supported lookup expressions. Use ("exact",) for equality checks and ("exact", "lte", "gte") for date or numeric fields that benefit from range queries. Try to cover as many fields as makes sense for clients to filter against.

As always, for cross-cutting concerns, the auth app provides mixins. These are roughly identical to the mixins used in the model definitions:

Audit trail filters — CreatedModifiedByFilterMixin adds created_by and modified_by character filters resolved by username, plus date-range lookups for created_at and modified_at. Use it for any model that includes CreatedModifiedByMixin.

Scope-member filters — ScopeFilterMixin adds scope_type and scope_uuid filters for models that implement ScopeMixin. The scope_type parameter accepts either a numeric content-type primary key or a fully-qualified model string such as "openbook_content.course".

Scope-owner filters — ScopedRolesFilterMixin adds an owner filter resolved by username. Use it for models that implement ScopedRolesMixin.

Permission filters — PermissionsFilterMixin and PermissionFilterMixin filter by Django permission strings in the form "app_label.codename". The former targets M2M permission relations; the latter targets a single FK permission field.

In some very special cases, a field cannot be mapped to a standard lookup expression. You then need to define a new property for the field and pass it a filter method like so:

from django_filters.filters import CharFilter


class EnrollmentMethodFilter(ScopeFilterMixin, CreatedModifiedByFilterMixin, FilterSet):
    # Explicit filter field
    role = CharFilter(method="role_filter")

    class Meta:
        model  = EnrollmentMethod
        fields = {
            # The field is included, but the match types are deliberately empty
            "role": (),
            ...
        }

    # Custom filter logic for the field
    def role_filter(self, queryset, name, value):
        return queryset.filter(role__slug=value)

The method receives the queryset and the filter value and returns a filtered queryset. Use this pattern for any filter that must traverse a relation or apply logic that standard lookups cannot express.

Register API Routes

As a final step, edit routes.py to register the new ViewSet with the Django REST Framework router:

from .viewsets.learning_goal import LearningGoalViewSet


def register_api_routes(router, prefix):
    router.register(f"{prefix}/learning_goals", LearningGoalViewSet, basename="learning_goal")

The basename argument is used to generate the URL names for reverse lookups, such as learning_goal-list and learning_goal-detail. Use the model name in snake_case as the convention throughout OpenBook.

Advanced: Custom Actions

Use custom actions when you need endpoints beyond the standard CRUD methods provided by ModelViewSet. Define them with @action() from rest_framework.decorators.

The detail flag controls whether the endpoint targets one object (True) or the full collection (False). methods defines the allowed HTTP verbs, url_path defines the URL suffix, and permission_classes can override permissions for that action only.

Annotate every custom action with @extend_schema() so the OpenAPI output documents the request and response format correctly.

from drf_spectacular.utils      import extend_schema
from drf_spectacular.utils      import inline_serializer
from rest_framework.decorators  import action
from rest_framework.permissions import AllowAny
from rest_framework.response    import Response
from rest_framework.serializers import CharField


class EnrollmentMethodViewSet(ModelViewSetMixin, ModelViewSet):
    ...

    @extend_schema(
        operation_id = "auth_enrollment_method_enroll",
        summary      = "Enroll User",
        responses    = RoleAssignmentSerializer,
        request      = inline_serializer(
            name   = "EnrollActionRequestSerializer",
            fields = {"passphrase": CharField(required=False)},
        ),
    )
    @action(detail=True, methods=["put"], url_path="enroll", permission_classes=[AllowAny])
    def enroll(self, request, pk=None):
        """Self-enrollment of the current user via this enrollment method."""
        enrollment_method = self.get_object()
        role_assignment   = enrollment_method.enroll(
            user             = request.user,
            passphrase       = request.data.get("passphrase", None),
            check_permission = True,
        )
        return Response(RoleAssignmentSerializer(role_assignment).data)

Checklist Before Moving On

Before continuing to fixtures and tests, verify that:

1. The ViewSet file is in viewsets/, named after the model file.

2. The ViewSet inherits ModelViewSetMixin before ModelViewSet.

3. The @extend_schema() and @with_flex_fields_parameters() decorators are present.

4. All required attributes are set: queryset, serializer_class, filterset_class, search_fields.

5. The serializer extends FlexFieldsModelSerializer.

6. The serializer includes "id" and audit fields in read_only_fields.

7. expandable_fields is declared for all FK and M2M relations.

8. The filter class has FilterSet last in its MRO and includes all applicable filter mixins.

9. The ViewSet is registered in routes.py (not __init__.py).

See also

Django REST Framework ViewSet reference: https://www.django-rest-framework.org/api-guide/viewsets/

DRF Flex Fields 2 documentation: https://drf-flex-fields2.readthedocs.org

DRF Spectacular documentation: https://drf-spectacular.readthedocs.io/en/latest/

Django Filters documentation: https://django-filter.readthedocs.io/en/stable/

Creating Fixtures

Fixtures provide a reproducible baseline of data for local development and first-time deployments. Use YAML fixtures to keep the data readable, reviewable, and easy to maintain in version control.

1. Create and prepare the data first in Django Admin or the application UI until it reflects the state you want to ship as a fixture.

2. Then export only the data you need into a dedicated file under fixtures/<app>/ using the following command — including natural keys, to avoid unstable references with some of the external models:

   python manage.py dumpdata --format yaml --natural-foreign --natural-primary openbook_learning_progress


2. After export, treat the fixture as source code. Reorder entries logically, remove unnecessary null values, and add comments where relationships are not obvious.

3. When the fixture is stable, integrate it into the initial data loading workflow so other developers can bootstrap a complete project state with one command. The related management command lives in src/openbook/core/management/commands/load_initial_data.py.

Important

Keep the file extension as .yaml, because Django does not discover other extensions as fixtures.

Note

Natural keys are useful for export stability, but we do not use them as model-wide primary references. Adding natural keys across all models considerably increases model and manager complexity and often requires new uniqueness constraints that do not fit the domain model.

But generic relations remain the decisive limitation. Even with natural keys, object_id values in generic relations still point to concrete object identifiers. In practice, this means UUIDs remain part of the fixture data, and quite heavyweight custom serializers would be required to remove them consistently.

UUIDs keep this trade-off manageable. Unlike auto-increment IDs, UUIDs are stable enough for fixture exchange across environments and significantly reduce import collisions.

Writing Unit Tests

Test coverage is the quality gate for everything built in the previous tutorials. A well-tested feature can be refactored, extended, and maintained with confidence. The guiding principle is to test observable contracts and behaviour, not internal implementation details. Test what a class promises — the errors it raises, the objects it returns, the database state it produces — and leave the question of how it delivers that promise to the implementation.

Tests are usually organized around models where every test module follows the same three-class pattern. For a learning goal model, the file would be tests/learning_goal.py, and the class names would be LearningGoal_Test_Mixin, LearningGoal_Model_Tests, and LearningGoal_ViewSet_Tests.

1. <Model>_Test_Mixin holds the shared setUp() logic: creating users, parent objects, and the fixture records required by both test classes below it. It contains no test_* methods and serves purely as a reusable setup provider.

2. <Model>_Model_Tests tests low-level model behaviour: validation errors raised by clean(), the return values and side-effects of domain methods, and any permission checks enforced directly on the model.

3. <Model>_ViewSet_Tests tests the HTTP contract of the REST API: status codes, search, sorting, pagination, field expansion, and the full CRUD lifecycle.

Write the Test Mixin

Every test class needs a consistent, well-known database state before it can make meaningful assertions. Without a shared baseline, each test class would have to recreate the same users, parent objects, and fixture records independently, leading to duplication and drift. The test mixin solves this by centralising that setup in a single setUp() method that both <Model>_Model_Tests and <Model>_ViewSet_Tests inherit.

from openbook.auth.middleware.current_user import reset_current_user
from openbook.auth.models.user             import User
from ..models.learning_goal                import LearningGoal


class LearningGoal_Test_Mixin:
    def setUp(self):
        super().setUp()
        reset_current_user()

        # Setup mock data and save it to instance attributes
        self.user = User.objects.create_user(
            username = "student",
            email    = "student@test.com",
            password = "password",
        )

        self.goal_active = LearningGoal.objects.create(
            name      = "Understand mixins",
            is_active = True,
        )

        self.goal_inactive = LearningGoal.objects.create(
            name      = "Master serializers",
            is_active = False,
        )

Important

Always call super().setUp() first, then reset_current_user() to clear the request-scoped current-user context so that audit-trail fields set in one test do not bleed into another.

Also, keep the mixin free of test_* methods. Any test logic placed here would run twice — once for each subclass — and may produce unexpected interactions between the model tests and the ViewSet tests.

Write Model Tests

The model test class validates the low-level domain logic that lives directly on the model. This is where you confirm that the model enforces its own rules: that clean() rejects invalid data, that domain methods return the right objects, that side-effects on related records occur as promised, and that the correct exceptions are raised when preconditions are violated. These tests run entirely in Python without HTTP — they are fast, focused, and independent of the REST layer.

Inherit from the mixin first and TestCase last, so that Python’s method resolution order (MRO) calls the mixin’s setUp() before Django’s test infrastructure:

from django.core.exceptions import ValidationError
from django.test            import TestCase


class LearningGoal_Model_Tests(LearningGoal_Test_Mixin, TestCase):
    """
   Tests for the :class:`LearningGoal` model.
    """

    def test_inactive_goal_raises_on_enroll(self):
        """
        Enrolling against an inactive goal raises :class:`ValidationError`.
        """
        with self.assertRaises(ValidationError):
            self.goal_inactive.enroll(user=self.user)

    def test_complete_returns_assignment(self):
        """
        :meth:`complete` returns the created completion record.
        """
        result = self.goal_active.complete(user=self.user)
        self.assertIsNotNone(result)
        self.assertEqual(result.goal, self.goal_active)

Except for the self-written mixin class, this is a straightforward Django unit test class. Good candidates for tests are:

• clean() validation rules,

• domain method return types and return values,

• database side-effects (rows created or deleted),

• exceptions raised under invalid conditions.

Give each test method a docstring that reads as a one-sentence specification that becomes the failure message when the test breaks.

Hint

Prefer one focused assertion per test method. A test that checks five things at once gives you a pass/fail result but no useful signal about which contract was broken.

Write ViewSet Tests

The ViewSet test class verifies the full HTTP contract that clients depend on. Where model tests check Python-level behaviour, ViewSet tests confirm that the right status codes are returned, that authentication and authorisation are enforced, that list responses support search, sorting, and pagination, and that create, update, and delete operations produce the expected database state. Writing these tests by hand for every endpoint would be tedious and error-prone; OpenBook’s ModelViewSetTestMixin generates the repetitive baseline tests automatically so developers can focus on the edge cases specific to each model.

LearningGoal_ViewSet_Tests tests the REST API layer. The bulk of the work is handled automatically by OpenBook’s ModelViewSetTestMixin, imported from openbook.test. For every configured operation it produces three test methods at class-creation time:

• An unauthenticated request that must return 401 or 403.

• An authenticated but unauthorised request that must return 403 or 404 for single objects or an empty list for the list action.

• An authorised request that must return the expected status code and produce the expected database state.

For the list action it additionally generates tests for search, sorting, and pagination. For retrieve it generates an expand-fields test and a 404 test for an unknown primary key. For update and partial_update it verifies that every field named in "updates" carries the expected value after the call. For destroy it checks that the object no longer exists.

All of this runs without a single manual test method. Providing the class attributes below is enough to activate the entire baseline suite:

from django.test        import TestCase
from openbook.test      import ModelViewSetTestMixin
from ..models.goal      import LearningGoal


class LearningGoal_ViewSet_Tests(ModelViewSetTestMixin, LearningGoal_Test_Mixin, TestCase):
    """
   Tests for the :class:`LearningGoalViewSet` REST API.
    """
    base_name         = "learning_goal"
    model             = LearningGoal
    count             = 2
    search_string     = "mixins"
    search_count      = 1
    sort_field        = "name"
    expandable_fields = ["created_by", "modified_by"]

From top to bottom this defines:

Router base name — base_name is used to reverse URL names such as learning_goal-list and learning_goal-detail. It must match the basename argument passed to the router in routes.py.

Model class — model lets the mixin derive permission strings automatically, for example openbook_learning_progress.view_learninggoal.

Expected list count — count is the number of results the list endpoint must return when the test user has full permissions. Set it to the number of objects setUp() creates that are visible to the requesting user. Use a negative value to skip the count assertion.

Search configuration — search_string and search_count configure the search test. The mixin calls the list endpoint with ?_search=<search_string> and asserts that exactly search_count results are returned.

Sort and pagination field — sort_field names the field used for sort and pagination tests. The mixin calls the list endpoint with ?_sort=<sort_field> and verifies the results are in order, then runs a pagination test with ?_page_size=1&_page=1.

Expandable relation names — expandable_fields lists the relation names to test with ?_expand=. Append [] to a name for many-relations so the mixin expects a list of objects rather than a single object.

Disable Unsupported Operations

Set "supported": False for an operation to assert that the endpoint returns 405 (Method Not Allowed). This is useful when a ViewSet intentionally omits destroy or another standard action:

class LearningGoal_ViewSet_Tests(ModelViewSetTestMixin, LearningGoal_Test_Mixin, TestCase):
    ...
    operations = {
        "destroy": {
            "supported": False,
        },
    }

Override Permission Checks

When a model is visible without authentication because a scope grants public permissions, set "model_permission": () to skip the permission check for that operation in the ViewSet tests:

class LearningGoal_ViewSet_Tests(ModelViewSetTestMixin, LearningGoal_Test_Mixin, TestCase):
    ...
    operations = {
        "list": {
            "model_permission": (),
        },
    }

Provide Request Data and Verify Updates

Operations that write data need request bodies and post-save assertions. Declare these in the operations dictionary by overriding only the keys that differ from the defaults:

class LearningGoal_ViewSet_Tests(ModelViewSetTestMixin, LearningGoal_Test_Mixin, TestCase):
    ...
    def setUp(self):
        super().setUp()
        self.url_list   = reverse("learning_goal-list")
        self.url_detail = reverse("learning_goal-detail", args=[str(self.goal_active.pk)])

    def pk_found(self):
        return self.goal_active.id

    def get_create_request_data(self):
        return {
            "name":      "New Learning Goal",
            "is_active": True,
        }

    def get_update_request_data(self):
        return {
            "name":      "Updated Goal",
            "is_active": False,
        }

    operations = {
        "create": {
            "request_data": get_create_request_data,
        },
        "update": {
            "request_data": get_update_request_data,
            "updates": {
                "name":      "Updated Goal",
                "is_active": False,
            },
        },
        "partial_update": {
            "request_data": {"is_active": False},
            "updates":      {"is_active": False},
        },
    }

pk_found() can be a method returning self.goal_active.id rather than a hard-coded string, so it is evaluated lazily after setUp() has run. request_data likewise accepts a method so the request body can reference objects created in setUp().

The "updates" dictionary declares the assertions the mixin runs after a write operation completes. Only the fields listed here are checked. Any field omitted is not asserted at all. Each entry maps a field name to the value that field has in the database after the API call returns. Nested dicts traverse relations: {"role": {"slug": "student"}} follows the role foreign key and asserts its slug field. For cases where this dict-based approach is too limited, provide a callable under "assertions" instead.

Custom Actions and Additional Tests

For anything beyond standard CRUD web service actions, the ViewSet test class can contain ordinary test_* methods. Use them for custom @action endpoints, edge cases, and business rules expressed over HTTP. Use the helper methods inherited from ModelViewSetTestMixin to manage authentication:

class LearningGoal_ViewSet_Tests(ModelViewSetTestMixin, LearningGoal_Test_Mixin, TestCase):
    ...
    def test_enroll_no_passphrase(self):
        """
        Self-enrollment without a passphrase returns 200 and creates a role assignment.
        """
        self.login(username="student", password="password")
        ...

    def test_enroll_unauthenticated(self):
        """
        Unauthenticated enrollment is rejected.
        """
        self.logout()

        response = self.client.put(self.url_enroll)
        self.assertIn(response.status_code, [401, 403])

Inside your test methods you can use the following helpers:

• self.login(username, password) to authenticate as a specific existing user

• self.create_user_and_login(perm_strings) to create a temporary user

• self.logout() to return to the unauthenticated state

Register in __init__.py

Register the module in tests/__init__.py so Django’s test runner discovers it. Otherwise the tests won’t run when manage.py test is executed.

from .learning_goal import *

Checklist Before Moving On

Before committing the new feature, verify that:

1. The test file is placed under tests/, named after the model file.

2. tests/__init__.py imports the module so the test runner discovers it.

3. The test mixin calls super().setUp() and reset_current_user().

4. The test mixin class contains no test_* methods.

5. <Model>_Model_Tests covers clean() validation and all domain methods.

6. <Model>_ViewSet_Tests inherits ModelViewSetTestMixin, the test mixin and then TestCase.

7. All required class attributes for ModelViewSetTestMixin are declared.

8. The operations dict contains only the overrides that differ from the defaults.

9. get_create_request_data() is defined when create is supported.

10. Likewise, get_update_request_data() is defined when update is supported.

11. Custom @action endpoints have at least one manual test method each.

See also

Django testing documentation: https://docs.djangoproject.com/en/stable/topics/testing/

Django REST Framework testing guide: https://www.django-rest-framework.org/api-guide/testing/

Adding New Websocket Channels

Important

This tutorial is still in flux. It will be updated as we figure the details with regard to the OpenBook architecture out.

As it stands now, we will likely integrate chanx to simplify all this and add automated AsyncAPI generation and schema validation similar to how we do in the REST API. See issue 69 on GitHub.

WebSocket channels add a bidirectional, long-lived connection between browser and server. Unlike regular HTTP requests, the server can push updates at any time after the connection is accepted. This pattern is useful for live progress updates, collaborative editing signals, notifications, or any UI state that should change without polling. In Django projects, this is commonly implemented with Django Channels. Channels extends the ASGI stack and introduces consumers, channel layers, and routing for WebSocket endpoints. The tutorial below describes the recommended implementation flow for OpenBook, independent of the final concrete app integration.

Understand the Building Blocks

Before implementing a new channel, align on the responsibilities of each component. AsyncJsonWebsocketConsumer (or AsyncWebsocketConsumer) handles one WebSocket connection. Routing maps URL paths to consumer classes. The channel layer handles fan-out and cross-process message delivery using named groups. The browser client subscribes to a URL and reacts to JSON messages.

Compared to REST endpoints, there is no request/response lifecycle per update. Instead, a connection is established once, then messages flow both ways until the socket closes. Authentication and authorization still apply, but they are checked at connect-time and, for sensitive operations, again per message.

Define the Event Contract First

Start by designing the message schema before writing code. A stable message contract keeps backend consumers and Svelte clients aligned.

Use JSON envelopes with explicit type names and a small shared metadata shape. For example:

{
   "type": "learning_goal.updated",
   "version": 1,
   "payload": {
      "id": "8b7f2a2b-8b7f-4bce-a620-1f1c8666f522",
      "name": "Understand mixins",
      "is_active": true
   }
}

Keep event names domain-specific (for example learning_goal.updated) and introduce a version field from day one. This avoids breaking clients when payloads evolve.

Note

For now, simply document the contract via examples (like the one above) in the source code. Use docstrings or comments to collect the samples. Later we will define a process to properly document the event contracts in the manual.

Add Backend Routing and a Consumer

Create a dedicated module for WebSocket consumers in the owning app, for example src/openbook/learning_progress/consumers/learning_goal.py. Then create a routing module that maps URL paths to these consumers. A minimal example looks like this:

import json

from channels.generic.websocket import AsyncJsonWebsocketConsumer


class LearningGoalConsumer(AsyncJsonWebsocketConsumer):
   """Websocket handler for real-time monitoring of learning goals."""

   async def connect(self):
      """Accept a new client connection and join it to the group."""
      self.course_id = self.scope["url_route"]["kwargs"]["course_id"]
      self.group_name = f"course_{self.course_id}_learning_goals"

      await self.channel_layer.group_add(self.group_name, self.channel_name)
      await self.accept()

   async def disconnect(self, close_code):
      """Remove this client from the group when it disconnects."""
      await self.channel_layer.group_discard(self.group_name, self.channel_name)

   async def receive_json(self, content, **kwargs):
      """Handle incoming messages from this connected client."""
      # Keep incoming handling strict and explicit.
      if content.get("type") == "ping":
         await self.send_json({"type": "pong", "version": 1, "payload": {}})

   async def learning_goal_updated(self, event):
      """Forward a learning_goal_updated group message to this client's connection."""
      await self.send_json(event["message"])

Note

Each client connection receives its own consumer instance. In development, all instances run in a single process. In production with multiple worker processes, connections may be distributed across different processes, each with its own instances. The channel layer (via CHANNEL_LAYERS in settings, typically Redis) coordinates group messaging across all processes and instances. This is why group_add() and group_send() work reliably for broadcasting: the channel layer ensures that messages sent to a group reach all subscribed clients, regardless of which process handles their connection.

Matching routing example:

from django.urls import re_path

from .consumers.learning_goal import LearningGoalConsumer


websocket_urlpatterns = [
   re_path(
      r"^ws/learning-progress/courses/(?P<course_id>[0-9a-f-]+)/goals/$",
      LearningGoalConsumer.as_asgi(),
   ),
]

At project level, include app-specific patterns in the ASGI WebSocket router so Django Channels can dispatch incoming connections to the correct consumer.

Group Communication Between Clients

In the consumer code above, we used two important operations: group_add() and group_discard(). These are the foundation for broadcasting messages to multiple clients at once.

What are groups? — A group is a named channel that multiple consumers can subscribe to. When a message is sent to a group, all subscribed consumers receive it. Groups exist within the channel layer (your Redis instance or in-memory broker) and allow communication across different ASGI worker processes. Without groups, you can only send messages directly to one consumer’s channel; with groups, you broadcast to many.

Note

Use groups when you need to broadcast the same event to multiple connected clients simultaneously. For example, when a learning goal is updated, all clients viewing that course should receive the notification. However, if you only need to exchange data between one client and the server (e.g., file uploads, form submissions, or personalized progress updates), groups are unnecessary. In those cases, simply send messages directly to the client via send_json() without involving the channel layer. Groups would only add latency and complexity that serve no purpose for simple one-to-one communication.

Joining and leaving groups — In the consumer’s connect() method, we add the current connection to a group:

await self.channel_layer.group_add(self.group_name, self.channel_name)

The first argument is the group name (a string like "course_123_learning_goals"), and the second is the channel name of this specific connection (provided by Django Channels). When the client disconnects, we remove them:

await self.channel_layer.group_discard(self.group_name, self.channel_name)

Sending to groups — Outside the consumer (for example in a view or signal handler), send a message to all members of a group using group_send(). The message is a dictionary with at minimum a type key:

await channel_layer.group_send(
    "course_123_learning_goals",
    {
        "type": "goal_updated",        # Maps to learning_goal_updated() method
        "goal_id": "abc123",           # Additional data for the handler
        "name": "New Goal Name",
    }
)

Type-to-method mapping — The type field in the message dictionary is special. Django Channels converts dots to underscores and calls the matching consumer method. So a message with "type": "goal_updated" invokes the goal_updated() method. A message with "type": "learning.goal.updated" invokes learning_goal_updated(). This allows one consumer to handle multiple message types by defining multiple handler methods.

Complete example with multiple message types — Here is an extended consumer that handles two different event types:

import json
from channels.generic.websocket import AsyncJsonWebsocketConsumer


class LearningGoalConsumer(AsyncJsonWebsocketConsumer):
    """Websocket handler for real-time monitoring of learning goals."""

    async def connect(self):
        """Accept a new client connection and join it to the group."""
        self.course_id = self.scope["url_route"]["kwargs"]["course_id"]
        self.group_name = f"course_{self.course_id}_learning_goals"

        await self.channel_layer.group_add(self.group_name, self.channel_name)
        await self.accept()

    async def disconnect(self, close_code):
        """Remove this client from the group when it disconnects."""
        await self.channel_layer.group_discard(self.group_name, self.channel_name)

    async def receive_json(self, content, **kwargs):
        """Handle incoming messages from this connected client."""
        if content.get("type") == "ping":
            await self.send_json({
                "type": "pong",
                "version": 1,
                "payload": {}
            })

    async def goal_created(self, event):
        """Handle goal_created messages from the group."""
        await self.send_json({
            "type": "learning_goal.created",
            "version": 1,
            "payload": event["payload"],
        })

    async def goal_updated(self, event):
        """Handle goal_updated messages from the group."""
        await self.send_json({
            "type": "learning_goal.updated",
            "version": 1,
            "payload": event["payload"],
        })

And from a view or signal handler, publish to the group:

from asgiref.sync import async_to_sync
from channels.layers import get_channel_layer


def create_learning_goal(request):
    # Create the goal in the database...
    goal = LearningGoal.objects.create(name="New Goal")

    # Notify all clients in the group
    channel_layer = get_channel_layer()
    async_to_sync(channel_layer.group_send)(
        f"course_{goal.course_id}_learning_goals",
        {
            "type": "goal_created",
            "payload": {
                "id": str(goal.id),
                "name": goal.name,
            },
        }
    )

    return JsonResponse({"status": "created"})

Each connected client in the group receives the message, and their consumer’s goal_created() method is invoked, which then sends the formatted message to that client’s WebSocket connection.

Key points — Groups bridge synchronous and asynchronous code through the channel layer. When you call group_send() from a synchronous view, the channel layer queues the message and delivers it asynchronously to all group members. Each member’s consumer instance receives the message independently, ensuring that broadcasting works correctly even with multiple worker processes. The type-to-method mapping keeps message handling organized and extensible as you add new event types over time.

Publish Events From Domain Logic

Publishing should happen where state changes are authoritative, usually in service methods, signals, or custom action handlers. The publisher sends a typed message to the group; the consumer then forwards it to connected clients.

Example publisher call:

from asgiref.sync import async_to_sync


async_to_sync(channel_layer.group_send)(
   f"course_{course_id}_learning_goals", {
      "type": "learning_goal_updated",
      "message": {
         "type": "learning_goal.updated",
         "version": 1,
         "payload": {
            "id": str(goal.id),
            "name": goal.name,
            "is_active": goal.is_active,
         },
      },
   },
)

The type passed to group_send() maps to a consumer method name where dots are translated to underscores. For that reason, learning_goal_updated is handled by learning_goal_updated() in the consumer.

Consume Events in Svelte 5

In Svelte, create one small client module that owns connection setup, reconnect behavior, and event dispatching to stores or callbacks. Keep this logic centralized to avoid duplicate socket handling in multiple components.

Start with a socket module that handles connection, disconnection, and error recovery:

// src/lib/learningGoalsSocket.js
/**
 * WebSocket connection manager for learning goals real-time updates.
 * Handles connection lifecycle, reconnection logic, and message validation.
 */

import { writable } from "svelte/store";

let socket = null;
let reconnectAttempts = 0;
const MAX_RECONNECT_ATTEMPTS = 5;
const RECONNECT_DELAY = 2000;

/** Reactive store indicating whether the WebSocket is currently connected. */
export const isConnected = writable(false);

/** Reactive store holding the last connection error message, or null if none. */
export const connectionError = writable(null);

/**
 * Constructs the WebSocket URL for the given course ID.
 * Uses secure (wss) or insecure (ws) protocol based on the current page protocol.
 * @param {string} courseId - The course identifier.
 * @returns {string} The WebSocket URL.
 */
function buildSocketUrl(courseId) {
   const protocol = window.location.protocol === "https:" ? "wss" : "ws";
   return `${protocol}://${window.location.host}/ws/learning-progress/courses/${courseId}/goals/`;
}

/**
 * Validates and processes an incoming WebSocket message.
 * Messages must have a type and version field; others are logged as warnings.
 * @param {Object} message - The parsed JSON message from the server.
 * @param {string} message.type - The event type (e.g., "learning_goal.updated").
 * @param {number} message.version - The message contract version.
 * @param {Function} onEvent - Callback to dispatch valid messages.
 */
function handleMessage(message, onEvent) {
   // Validate message shape before processing
   if (!message.type || !message.version) {
      console.warn("Invalid message format:", message);
      return;
   }

   // Dispatch to handler or application logic
   onEvent(message);
}

/**
 * Attempts to reconnect to the WebSocket after a delay.
 * Gives up after MAX_RECONNECT_ATTEMPTS and sets an error message.
 * @param {string} courseId - The course identifier.
 * @param {Function} onEvent - The event handler callback.
 */
function attemptReconnect(courseId, onEvent) {
   if (reconnectAttempts >= MAX_RECONNECT_ATTEMPTS) {
      connectionError.set("Failed to reconnect after multiple attempts");
      return;
   }

   reconnectAttempts += 1;
   setTimeout(() => {
      connect(courseId, onEvent);
   }, RECONNECT_DELAY);
}

/**
 * Establishes a WebSocket connection to the learning goals channel for the given course.
 * Sets up event listeners for open, message, error, and close events.
 * @param {string} courseId - The course identifier.
 * @param {Function} onEvent - Callback invoked with each valid incoming message.
 */
export function connect(courseId, onEvent) {
   const url = buildSocketUrl(courseId);

   socket = new WebSocket(url);

   socket.addEventListener("open", () => {
      isConnected.set(true);
      connectionError.set(null);
      reconnectAttempts = 0;
   });

   socket.addEventListener("message", (event) => {
      try {
         const message = JSON.parse(event.data);
         handleMessage(message, onEvent);
      } catch (error) {
         console.error("Failed to parse WebSocket message:", error);
      }
   });

   socket.addEventListener("error", (error) => {
      console.error("WebSocket error:", error);
      connectionError.set("Connection error");
   });

   socket.addEventListener("close", () => {
      isConnected.set(false);
      attemptReconnect(courseId, onEvent);
   });
}

/**
 * Closes the WebSocket connection and resets the internal state.
 * Updates isConnected store to false.
 */
export function disconnect() {
   if (socket) {
      socket.close();
      socket = null;
   }
   isConnected.set(false);
}

/**
 * Sends a message to the server via the WebSocket.
 * Does nothing if the socket is not connected; logs a warning.
 * @param {Object} message - The message object to send (will be JSON-stringified).
 * @param {string} message.type - The event type (e.g., "ping").
 * @param {number} message.version - The message contract version.
 */
export function sendMessage(message) {
   if (socket && socket.readyState === WebSocket.OPEN) {
      socket.send(JSON.stringify(message));
   } else {
      console.warn("Socket not connected, message not sent:", message);
   }
}

Now create a store for managing learning goals:

// src/lib/learningGoalsStore.js
/**
 * Svelte store for managing the list of learning goals.
 * Provides reactive operations: add, update, delete, and set goals.
 */

import { writable } from "svelte/store";

/**
 * Creates a custom Svelte store for learning goals.
 * @returns {Object} Store with subscribe, addGoal, updateGoal, deleteGoal, and setGoals methods.
 */
function createLearningGoalsStore() {
   const { subscribe, set, update } = writable([]);

   return {
      subscribe,

      /**
       * Adds a new goal to the list.
       * @param {Object} goal - The goal object to add.
       */
      addGoal: (goal) => update((goals) => [...goals, goal]),

      /**
       * Updates an existing goal by ID with new property values.
       * @param {string} goalId - The goal's unique identifier.
       * @param {Object} updates - Partial object with properties to merge.
       */
      updateGoal: (goalId, updates) => update((goals) =>
         goals.map((g) => (g.id === goalId ? { ...g, ...updates } : g))
      ),

      /**
       * Removes a goal from the list by ID.
       * @param {string} goalId - The goal's unique identifier.
       */
      deleteGoal: (goalId) => update((goals) =>
         goals.filter((g) => g.id !== goalId)
      ),

      /**
       * Replaces the entire goals list with a new array.
       * @param {Array} goals - The new goals array.
       */
      setGoals: (goals) => set(goals),
   };
}

/** Exported store instance for use in components. */
export const learningGoals = createLearningGoalsStore();

Finally, use the socket and store together in a component:

<!-- src/frontend/app/src/components/pages/learning-goals/LearningGoalsPage.svelte -->

<script>
   import { onMount, onDestroy } from "svelte";
   import { learningGoals } from "../../stores/learningGoalsStore.js";
   import { connect, disconnect, isConnected, connectionError, sendMessage } from "../../sockets/learningGoalsSocket.js";

   /** @type {string | number} */
   export let courseId;

   /**
    * Handles incoming WebSocket messages and updates the store accordingly.
    * Dispatches messages by type: created, updated, or deleted events.
    * Unknown message types are logged as warnings.
    * @param {Object} message - The incoming WebSocket message.
    * @param {string} message.type - The event type (e.g., "learning_goal.created").
    * @param {Object} message.payload - The event payload containing goal data.
    */
   function handleSocketEvent(message) {
      switch (message.type) {
         case "learning_goal.created":
            learningGoals.addGoal(message.payload);
            break;

         case "learning_goal.updated":
            learningGoals.updateGoal(message.payload.id, message.payload);
            break;

         case "learning_goal.deleted":
            learningGoals.deleteGoal(message.payload.id);
            break;

         default:
            console.warn("Unknown message type:", message.type);
      }
   }

   /**
    * Lifecycle hook: runs when the component mounts.
    * Fetches initial goals from the REST API and establishes the WebSocket connection.
    */
   onMount(async () => {
      // Fetch initial goals from REST API
      const response = await fetch(`/api/learning_progress/learning_goals/?course=${courseId}`);
      const data = await response.json();
      learningGoals.setGoals(data.results);

      // Connect WebSocket for real-time updates
      connect(courseId, handleSocketEvent);
   });

   /**
    * Lifecycle hook: runs when the component is destroyed.
    * Closes the WebSocket connection to release resources.
    */
   onDestroy(() => {
      disconnect();
   });

   /**
    * Sends a ping message to the server to test the connection.
    * Useful for debugging or keeping the connection alive.
    */
   function sendPing() {
      sendMessage({ type: "ping", version: 1, payload: {} });
   }
</script>

<div class="goals-container">
   <h2>Learning Goals</h2>

   {#if $connectionError}
      <div class="error">
         WebSocket connection failed: {$connectionError}
      </div>
   {/if}

   <div class="status">
      Status: {$isConnected ? "Connected" : "Disconnected"}
      <button on:click={sendPing} disabled={!$isConnected}>
         Test Connection
      </button>
   </div>

   <ul class="goals-list">
      {#each $learningGoals as goal (goal.id)}
         <li class="goal-item" class:inactive={!goal.is_active}>
            <strong>{goal.name}</strong>
            <p>{goal.description}</p>
            <span class="level">{goal.level}</span>
         </li>
      {/each}
   </ul>
</div>

<style>
   .goals-container {
      padding: 1rem;
   }

   .error {
      background: #fee;
      border: 1px solid #f44;
      padding: 0.5rem;
      border-radius: 4px;
      color: #c00;
      margin-bottom: 1rem;
   }

   .status {
      margin-bottom: 1rem;
      padding: 0.5rem;
      background: #eee;
      border-radius: 4px;
   }

   .goals-list {
      list-style: none;
      padding: 0;
   }

   .goal-item {
      padding: 1rem;
      margin-bottom: 0.5rem;
      border: 1px solid #ddd;
      border-radius: 4px;
      background: white;
   }

   .goal-item.inactive {
      opacity: 0.6;
   }

   .level {
      display: inline-block;
      background: #0066cc;
      color: white;
      padding: 0.25rem 0.5rem;
      border-radius: 3px;
      font-size: 0.85rem;
      margin-top: 0.5rem;
   }
</style>

This end-to-end example shows:

1. Socket module with reconnection logic, error handling, and message validation

2. Store for reactive state management of goals

3. Component that initializes the connection, handles incoming events, and renders the UI

4. Error handling throughout: invalid message formats, connection failures, and recovery

The WebSocket events update the Svelte store reactively, which automatically updates the UI whenever a goal is created, updated, or deleted by any client in the group.

Important

Validate access on connect before joining any group. Do not trust course_id from the URL without permission checks against the authenticated user. Also validate incoming message types and payload shape before processing to avoid unsafe side effects. In the socket module above, we validate message.type and message.version before dispatching; in the component, the switch statement safely ignores unknown message types.

Checklist Before Moving On

Before opening a pull request, verify that:

1. The event schema is documented and versioned.

2. URL routing and consumer registration are wired in the ASGI application.

3. The consumer joins and leaves groups correctly in connect() and disconnect().

4. Publish points are close to authoritative state changes.

5. Sensitive channels perform explicit permission checks.

6. The Svelte client handles reconnects and unknown message types gracefully.

7. Manual testing covers connect, receive, push update, and disconnect paths.

See also

Django Channels documentation: https://channels.readthedocs.io/en/stable/

ASGI specification: https://asgi.readthedocs.io/en/latest/

Svelte documentation: https://svelte.dev/docs

Adding New Background Tasks

Important

This tutorial is still in flux. It will be updated as we refine the details around the final OpenBook architecture. See issue 70 on GitHub.

Background tasks move slow, expensive, or failure-prone work out of the HTTP request/response path. Instead of blocking a user request while a long operation runs, the server enqueues a task, returns quickly, and processes the work asynchronously in a worker process. In Django projects, this is typically implemented with a task queue such as Celery. The patterns below describe a recommended implementation flow for OpenBook. Because this area is still evolving, consider the guidance here a stable starting point, not yet a final project-wide contract.

Understand the Building Blocks

Before implementing anything, align on four terms:

• Task — A Python function that can run outside the request lifecycle, often retried on transient errors.

• Broker — The queue transport (for example Redis or RabbitMQ) that receives enqueued tasks from Django and delivers them to workers.

• Worker — A background process that consumes queued tasks and executes task functions.

• Result backend — Optional persistence for task state and results so clients can query PENDING, STARTED, SUCCESS, or FAILURE.

Compared to synchronous view logic, task execution has different guarantees. A task may run later, be retried, run more than once, or fail after partial progress. For that reason, task code should be idempotent where possible and explicit about retry behavior.

Decide Whether Work Belongs in a Task

Use a background task when at least one of the following applies:

1. The operation is slow enough to hurt API response time.

2. The operation depends on external services that may be temporarily unavailable.

3. The operation can be retried safely without user interaction.

4. The operation is triggered by an event and does not need an immediate response body.

Examples of good candidates include exporting a large dataset, synchronizing with an external service, sending bulk notifications, or generating a report after a long-running import. Keep operations synchronous when the result is immediately required to render the next UI state, or when consistency rules demand one atomic database transaction across all steps.

Define the Task Contract First

Before writing the task function, define a small contract for input, output, and state reporting. This keeps API endpoints, workers, and frontend polling/websocket handlers aligned.

At minimum, decide:

1. Which identifier(s) the task receives (for example one model UUID).

2. Which states are visible to clients (for example queued, running, done, failed).

3. Which progress payload is exposed (for example percentage and current step label).

4. Which errors are retried versus surfaced as terminal failures.

Prefer passing primitive identifiers into the task instead of full serialized objects. The task can then load fresh database state at execution time and avoid stale payload assumptions.

Note

Document the contract as docstrings in the code.

Implement the Task Function

Place task functions in a dedicated module inside the owning app, for example src/openbook/learning_progress/tasks/goal_sync.py. Keep each task focused on one workflow, and keep reusable domain logic in ordinary service functions that can be tested independently of Celery.

Minimal task example:

from celery import shared_task


@shared_task(
    bind=True,
    autoretry_for=(ConnectionError, TimeoutError),
    retry_backoff=True,
    retry_jitter=True,
    max_retries=5,
)
def sync_learning_goal(self, goal_id):
   """Synchronize one learning goal with an external system in the background.

   Contract:
      Input:
         - ``goal_id`` (str): UUID of the learning goal.

      Progress states reported via ``update_state``:
         - ``PROGRESS`` with ``{"step": "loading", "percent": 10}``
         - ``PROGRESS`` with ``{"step": "synchronizing", "percent": 70}``
         - ``PROGRESS`` with ``{"step": "finalizing", "percent": 95}``

      Terminal outcomes:
         - ``SUCCESS`` returns a dict with ``goal_id``, ``status``, and
           ``external_reference``.
         - transient ``ConnectionError`` and ``TimeoutError`` are retried
           automatically (up to ``max_retries=5``).
   """
   self.update_state(
      state="PROGRESS",
      meta={"step": "loading", "percent": 10},
   )

   # Load model state lazily from the database.
   goal = LearningGoal.objects.get(pk=goal_id)

   self.update_state(
      state="PROGRESS",
      meta={"step": "synchronizing", "percent": 70},
   )

   result = synchronize_goal_with_external_system(goal)

   self.update_state(
      state="PROGRESS",
      meta={"step": "finalizing", "percent": 95},
   )

   return {
      "goal_id": str(goal.id),
      "status": "done",
      "external_reference": result.reference,
   }

The shared_task() decorator makes the function discoverable by workers. bind=True gives access to the task instance as self, which is required for update_state() and retry control.

Important

Keep task functions idempotent whenever possible. If a task retries or is delivered twice, running it again should not corrupt data or duplicate side effects.

Trigger Tasks From REST API Actions

A common pattern is to enqueue the task in a custom ViewSet` action and return a tracking payload immediately. This keeps request latency low while still giving the client enough data to monitor progress.

Example custom action:

from drf_spectacular.utils      import extend_schema
from rest_framework.decorators  import action
from rest_framework.response    import Response


class LearningGoalViewSet(ModelViewSetMixin, ModelViewSet):
   """REST endpoints for creating, reading, and synchronizing learning goals."""
   # Existing configuration ...

   @extend_schema(summary="Start Learning Goal Synchronization")
   @action(detail=True, methods=["post"], url_path="sync")
   def sync(self, request, pk=None):
      """Enqueue synchronization and return the HTTP task contract.

      Contract:
         - Returns ``202 Accepted`` when the task is queued.
         - Response payload includes:
           ``task_id`` (str), ``state`` ("queued"), and ``goal_id`` (str).
         - Clients use ``task_id`` to poll or subscribe for progress updates.
      """
      goal = self.get_object()
      async_result = sync_learning_goal.delay(str(goal.id))

      return Response(
         {
            "task_id": async_result.id,
            "state": "queued",
            "goal_id": str(goal.id),
         },
         status=202,
      )

Returning HTTP 202 indicates that the request was accepted for asynchronous processing and has not completed yet. Include at least task_id and a stable object reference so the frontend can bind UI state to the right task.

Expose Task Status to Clients

Clients need one read endpoint for task status. A minimal shape can include state, progress, and error information. Keep the response contract stable and explicit.

Example status payload:

{
   "task_id": "77a8c1c7-faf8-454f-bab6-bf7f6c95c2f8",
   "state": "PROGRESS",
   "progress": {
      "step": "synchronizing",
      "percent": 70
   },
   "result": null,
   "error": null
}

When the task succeeds, result contains the returned payload. On terminal failure, keep state and error explicit so the frontend can show actionable feedback.

Push Progress Updates to the UI

Polling works as a baseline, but WebSocket push gives better responsiveness for long-running jobs. The event flow is similar to the WebSocket tutorial above:

1. Task execution updates state (for example via update_state()).

2. A publisher emits typed progress events to a channel layer group.

3. The WebSocket consumer forwards events to connected clients.

4. Svelte components update local stores based on event type and task_id.

Use a typed envelope and version field from day one:

{
   "type": "task.progress.updated",
   "version": 1,
   "payload": {
      "task_id": "77a8c1c7-faf8-454f-bab6-bf7f6c95c2f8",
      "state": "PROGRESS",
      "percent": 70,
      "step": "synchronizing"
   }
}

Keep WebSocket subscriptions scoped. Clients should only receive events for tasks they are authorized to observe.

Handle Reliability and Operations

Background processing is an operational concern, not only an implementation detail. Define explicit settings for retries, time limits, and visibility into failures.

At minimum, configure and document:

1. Retry policy per task type.

2. Hard and soft execution time limits.

3. Dead-letter or failure handling strategy.

4. Worker concurrency and queue routing.

5. Metrics and logs for task success rate and latency.

During development, inspect worker logs and task state transitions for every new task before opening a pull request.

Checklist Before Moving On

Before opening a pull request, verify that:

1. The task contract (input, output, state) is documented.

2. The task function is idempotent or has explicit duplicate protection.

3. Retry rules cover transient failures only.

4. A REST endpoint starts the task and returns HTTP 202 with task_id.

5. A status endpoint exposes stable state, progress, and error fields.

6. UI updates work via polling or WebSocket events.

7. Permission checks prevent cross-user visibility of task progress.

8. Failure paths are tested and visible in logs.

See also

Celery documentation: https://docs.celeryq.dev/en/stable/

Django REST Framework actions: https://www.django-rest-framework.org/api-guide/viewsets/#marking-extra-actions-for-routing

Django Channels documentation: https://channels.readthedocs.io/en/stable/
